Cutting Fluid
Model
Beberapa model yang tersedia bisa dilihat satu persatu dibawah ini.

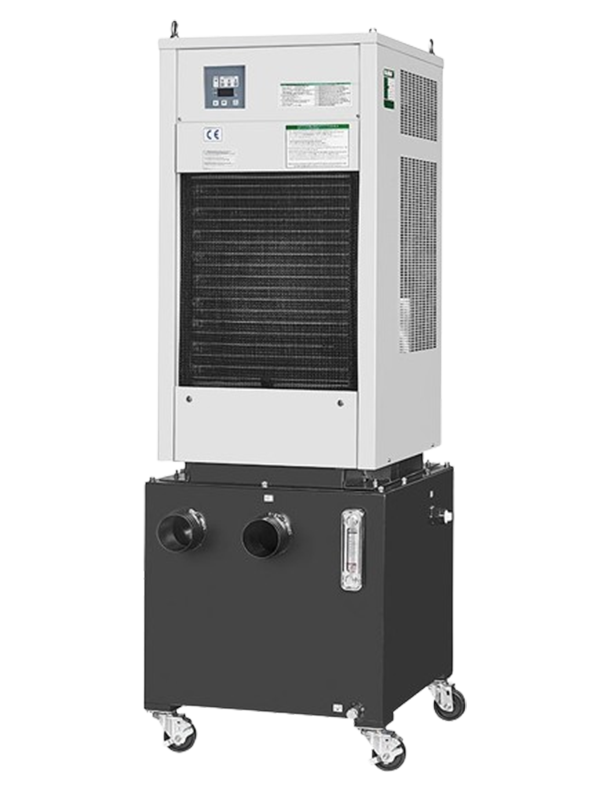

Cutting Fluid KN 2KMS-T

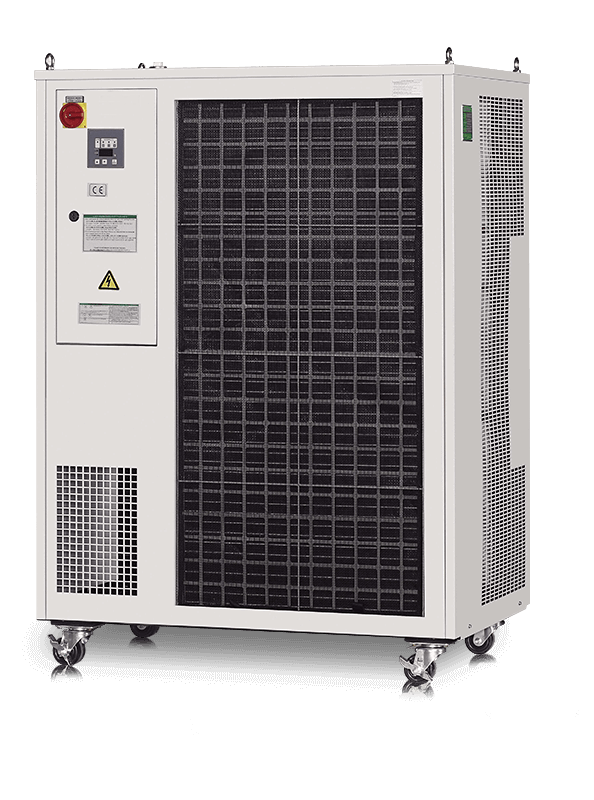

Cutting Fluid KE 4K-5KS

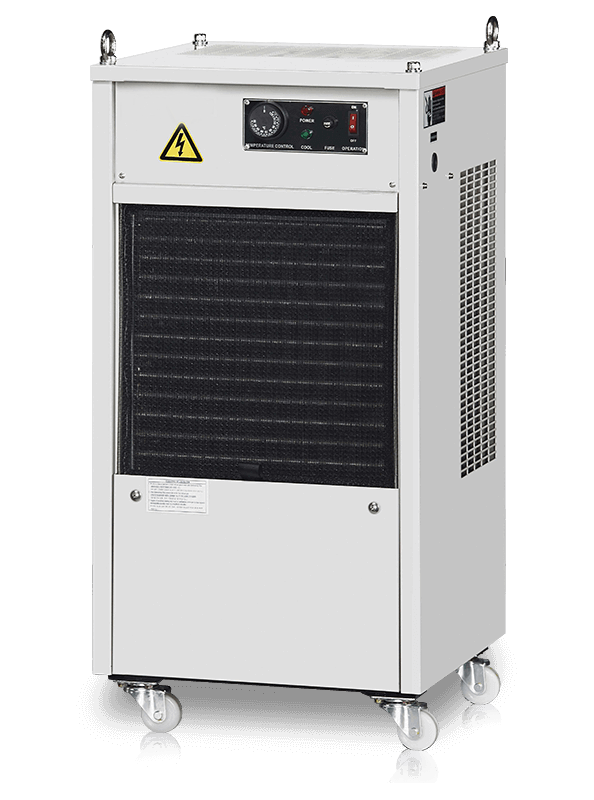

Cutting Fluid KE 4-6-8-12

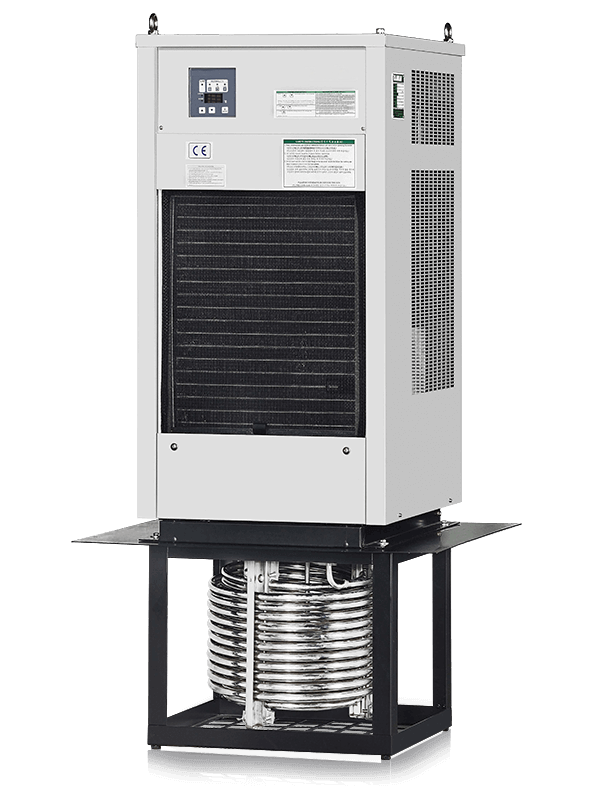

Cutting Fluid KE-2KNS
Deskripsi Produk
Beberapa model yang kami punya, penjelasan singkatnya bisa dilihat pada daftar dibawah ini.
Application
Applicable Machines
Notices
Spesifikasi Unit
Beberapa model yang kami punya, detail spesifikasinya bisa dilihat pada table dibawah ini.
| Models | KE - 4 | KE - 6 | KE - 8 | KE - 12 | ||
|---|---|---|---|---|---|---|
| Power Source | Main Power Source Voltage | 3 ~ 220 VAC 50 /60 Hz | ||||
| Control Circuit Voltage | 24 VDC / 220VAC | |||||
| Applicadle Fluid | Water, water-soluble cutting oil, cutting oil, grinding oil, electric discharge special oil, EDM oil | |||||
| Cooling Capacity 50 / 60 Hz | kcal/hr | 800 / 1000 | 1200 / 1500 | 1600 / 2000 | 2400 / 3000 | |
| W | 925 / 1160 | 1390 / 1740 | 1860 / 2325 | 2790 / 3488 | ||
| Temperature Control | Fixed Temperature | Fix Temperature ( Setting Range: 5 - 40℃) | ||||
| Ambient Temperature Working Rang | Envirtonmental Temperature | 5~ 40 ℃ | ||||
| Fluid Temperature | 5~ 40 ℃ | |||||
| In / Out Port Size | Inch | PT 1" | PT 1" | PT 1" | PT 1" | |
| Dimension | WхDхH mm | 365-385-870 | 455-460-915 | 455-460-915 | 475-455-915 | |
| Weight | KG | 42 | 55 | 60 | 68 | |
| Models | KE - 6PS | KE - 8PS | KE - 12PS | KE - 18PS | ||
|---|---|---|---|---|---|---|
| Power Source | Main Power Source Voltage | 3 ~ 220 VAC 50 /60 Hz | ||||
| Control Circuit Voltage | 24 VDC / 220VAC | |||||
| Applicadle Fluid | Water, water-soluble cutting oil, cutting oil, grinding oil, electric discharge special oil, EDM oil | |||||
| Cooling Capacity 50 / 60 Hz | kcal/hr | 1200 / 1500 | 1600 / 2000 | 2400 / 3000 | 3600 / 4500 | |
| W | 1390 / 1740 | 1860 / 2325 | 2790 / 3488 | 4185 / 5230 | ||
| Temperature Control | Fixed Temperature | Fix Temperature ( Setting Range: 5 - 40℃) | ||||
| Ambient Temperature Working Rang | Envirtonmental Temperature | 5~ 40 ℃ | ||||
| Fluid Temperature | 5~ 40 ℃ | |||||
| In / Out Port Size | Inch | PT 1"/PT 3/4" | PT 1"/PT 3/4" | PT 1"/PT 3/4" | PT 1" | |
| Dimension | WхDхH mm | 520-540-871 | 520-540-871 | 545-620-900 | 510-675-1045 | |
| Weight | KG | 89 | 89 | 98 | 120 | |
| Models | KE - 2KPS | KE - 3KPS | KE - 4KPS | KE - 5KPS | ||
|---|---|---|---|---|---|---|
| Power Source | Main Power Source Voltage | 3 ~ 220 VAC 50 /60 Hz | ||||
| Control Circuit Voltage | 24 VDC / 220VAC | |||||
| Applicadle Fluid | Water, water-soluble cutting oil, cutting oil, grinding oil, electric discharge special oil, EDM oil | |||||
| Cooling Capacity 50 / 60 Hz | kcal/hr | 4800 / 6000 | 7200 / 9000 | 9600 / 12000 | 12000 / 15000 | |
| W | 5580 / 6975 | 8370 / 10465 | 11160 / 13950 | 13920 / 17400 | ||
| Temperature Control | Fixed Temperature | Fix Temperature ( Setting Range: 5 - 40℃) | ||||
| Ambient Temperature Working Rang | Envirtonmental Temperature | 5~ 40 ℃ | ||||
| Fluid Temperature | 5~ 40 ℃ | |||||
| In / Out Port Size | Inch | PT 1" | PT 1"/PT 1-1/4" | PT 1-1/4" | PT 1-1/4" | |
| Dimension | WхDхH mm | 510-675-1045 | 660-760-1045 | 1130-735-1575 | 1130-735-1575 | |
| Weight | KG | 120 | 160 | 265 | 265 | |
1. All cooling capacity at an ambient temperature of 32 ℃, outlet liquid temperature of 25 ℃ and 220VAC 60Hz are measured.
2. Special voltage and specifications requested, please contact us.
3. Due to technological upgrading and quality improvement and change this specification without notice.
4. kcal/hr*3.968=BTU
5.The filter cans and filter elements are optional products, some models are recommended to be installed. If need our suggestions, please contact the business department.
| Models | KN - 6S | KN - 8S | KN - 12S | KN - 18MS | ||
|---|---|---|---|---|---|---|
| Power Source | Main Power Source Voltage | 3 ~ 220 VAC 50 /60 Hz | ||||
| Control Circuit Voltage | 24 VDC / 220VAC | |||||
| Applicadle Fluid | Water, water-soluble cutting oil, cutting oil, grinding oil, electric discharge special oil, EDM oil | |||||
| Cooling Capacity 50 / 60 Hz | kcal/hr | 1200 / 1500 | 1600 / 2000 | 2400 / 3000 | 3600 / 4500 | |
| W | 1390 / 1740 | 1860 / 2325 | 2790 / 3488 | 4185 / 5230 | ||
| Temperature Control | Fixed Temperature | Fix Temperature ( Setting Range: 5 - 40℃) | ||||
| Ambient Temperature Working Rang | Envirtonmental Temperature | 5~ 40 ℃ | ||||
| Fluid Temperature | 5~ 40 ℃ | |||||
| In / Out Port Size | Inch | - | ||||
| Dimension | WхDхH mm | 510-590-1270 | 545-660-1195 | 560-670-1500 | ||
| Weight | KG | 72 | 72 | 85 | 125 | |
| Models | KN - 2KMS | KN - 3KMS | KN - 4KMS | KN - 5KMS | ||
|---|---|---|---|---|---|---|
| Power Source | Main Power Source Voltage | 3 ~ 220 VAC 50 /60 Hz | ||||
| Control Circuit Voltage | 24 VDC / 220VAC | |||||
| Applicadle Fluid | Water, water-soluble cutting oil, cutting oil, grinding oil, electric discharge special oil, EDM oil | |||||
| Cooling Capacity 50 / 60 Hz | kcal/hr | 4800 / 6000 | 7200 / 9000 | 9600 / 12000 | 12000 / 15000 | |
| W | 5580 / 6975 | 8370 / 10465 | 11160 / 13950 | 13920 / 17400 | ||
| Temperature Control | Fixed Temperature | Fix Temperature ( Setting Range: 5 - 40℃) | ||||
| Ambient Temperature Working Rang | Envirtonmental Temperature | 5~ 40 ℃ | ||||
| Fluid Temperature | 5~ 40 ℃ | |||||
| In / Out Port Size | Inch | - | ||||
| Dimension | WхDхH mm | 560-670-1500 | 810-830-1650 | 1120-820-1710 | ||
| Weight | KG | 130 | 170 | 300 | 310 | |
1. All cooling capacity at an ambient temperature of 32 ℃, outlet liquid temperature of 25 ℃ and 220VAC 60Hz are measured.
2. Special voltage and specifications requested, please contact us.
3. Due to technological upgrading and quality improvement and change this specification without notice.
4. kcal/hr*3.968=BTU
5.The filter cans and filter elements are optional products, some models are recommended to be installed. If need our suggestions, please contact the business department.
