Oil Chiller

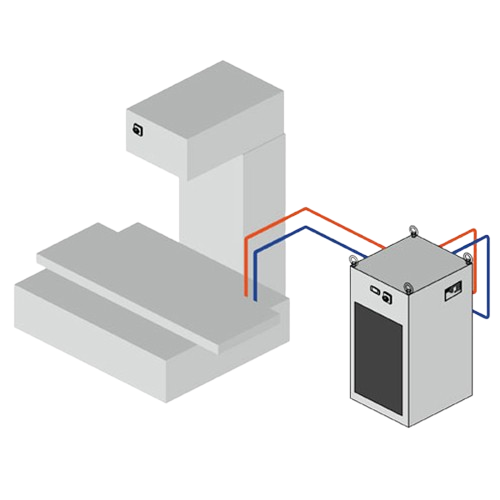

Cara Kerja Oil Chiller

Oil chiller memompa pelumas melalui penukar panas dan kompresor untuk mendinginkannya, menjaga kinerja mesin dan peralatan di manufaktur.

Order Now Contact Us

Temperature.co.id - Oil Chiller How It Works

Penggunaan Oil Chiller

Penggunaan Oil Chiller bisa berbeda tergantung dari kebutuhan serta situasi dan kondisi.

Bidang Pengaplikasian

Bidang pengaplikasian Oil Chiller bisa sangat beragam dan bermacam-macam, berikut contoh yang sering digunakan.

Hydraulic Oil Cooling Power Pack & Press

Mendinginkan pelumas hidrolik. Ini mengurangi panas yang dihasilkan oleh sistem hidrolik, meningkatkan efisiensi dan kinerja peralatan.

Cooling Oil Gear Hobbing Machining

Bertugas mendinginkan pelumas dan area pemotongan, mencegah kelebihan panas yang dapat mempengaruhi akurasi dan keawetan.

Lubricant Cooling Gear Box Spindle

Berfungsi mendinginkan pelumas yang melumasi gigi roda gigi dan spindle, mencegah kelebihan panas serta meningkatkan kinerja sistem secara keseluruhan.

Wire Cutting

Mendinginkan kawat yang dipotong serta alat pemotongnya, menjaga toleransi dimensi dan kualitas permukaan hasil pemotongan.

Boring Machine

Mendinginkan minyak yang digunakan sebagai pelumas dan pendingin di dalam mesin, membantu menjaga suhu operasional yang optimal, mencegah kelebihan panas, dan memperpanjang umur alat pemotong.

Drilling Machine

Mendinginkan minyak pelumas yang digunakan dalam proses pengeboran, membantu menjaga suhu alat potong, mengurangi gesekan, dan memperpanjang umur alat bor.

Wire Drawing

Mendinginkan minyak pelumas yang digunakan dalam proses, menjaga suhu optimal pada alat penarik kawat dan mencegah kelebihan panas.

Metal Cutting

Oil chiller pada proses pemotongan logam membantu menjaga suhu pisau dan material. Ini mendinginkan pisau dan memperpanjang umur pemotongan.

Spesifikasi Unit

Beberapa model yang kami punya, detail spesifikasinya bisa dilihat pada table dibawah ini.

TOC 005	TOC 010	TOC 020	TOC 030	TOC 050	OCB 075	OCB 100	Model
1.75	3.5	7.0	10.5	17.5	26.5	35	Cooling Capacity (kW)
1ph/230v/50hz	3Ph/415v/50hz						Operating Voltage
1.5	3.5	5.0	6.0	10.5	11.0	18.5	Power (kW)
10 - 15	20 - 23	35 - 40	60 - 70	100 - 110	155 - 160	205 - 215	Flow Rate (l/min)
1"				1-1/2"			In / Out Size (BSP)
90	110	150	170	300	395	450	Weight (kg)
650		800			1000		Dimension W (mm)
600				900	1780		D (mm)
1300		1765		1895	1600		H (mm)
View	View	View	View	View	View	View	Datasheet

Oil Chiller Model Lainnya

Beberapa model yang tersedia bisa dilihat satu persatu dibawah ini.

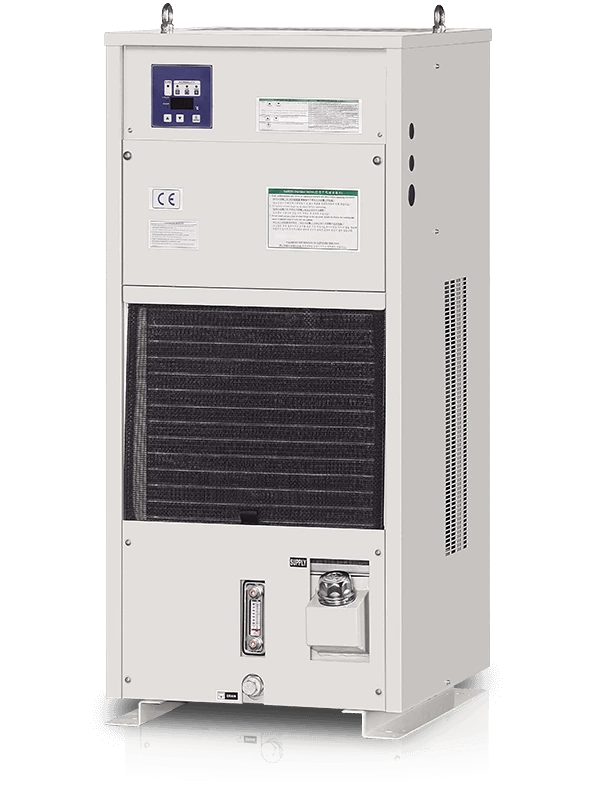

Oil Chiller KO 12PTHS

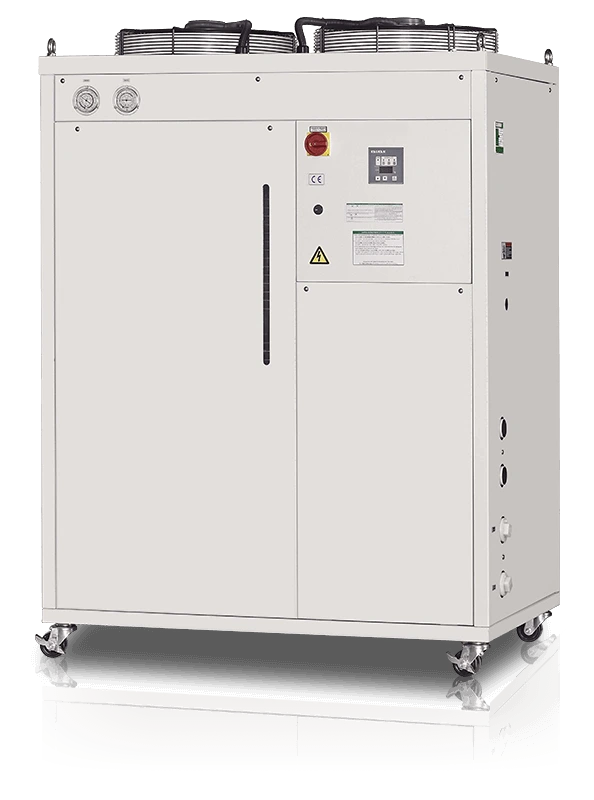

Oil Chiller KO 7

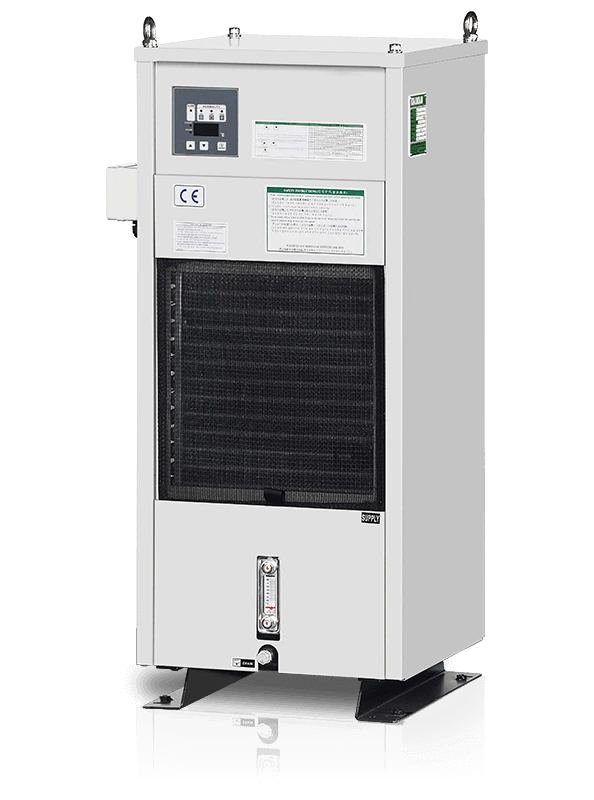

Oil Chiller KO 6-8 PTS

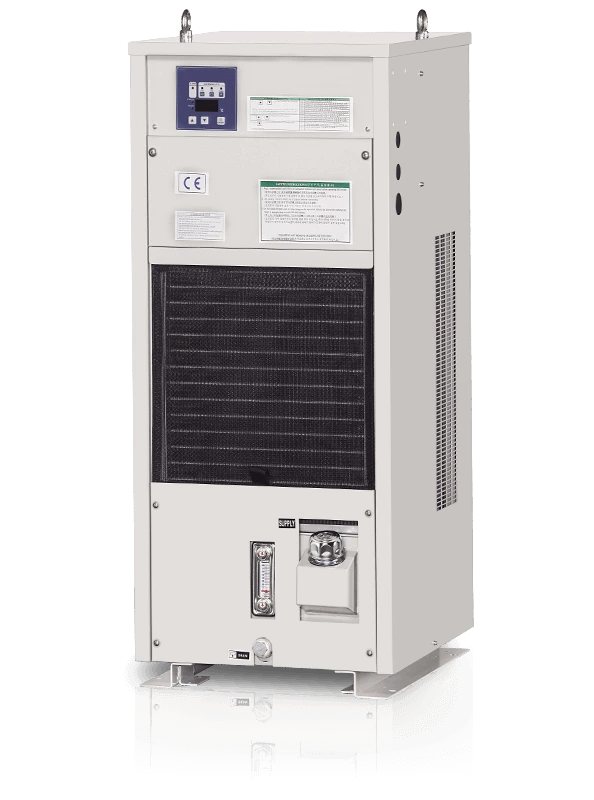

Oil Chiller KO 6-8 PTHS

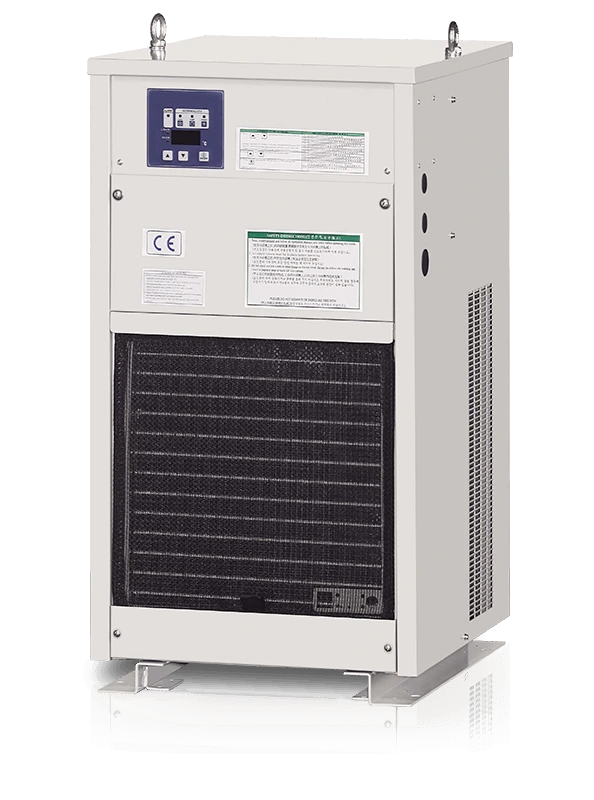

Oil Chiller KO 6-8 PHS

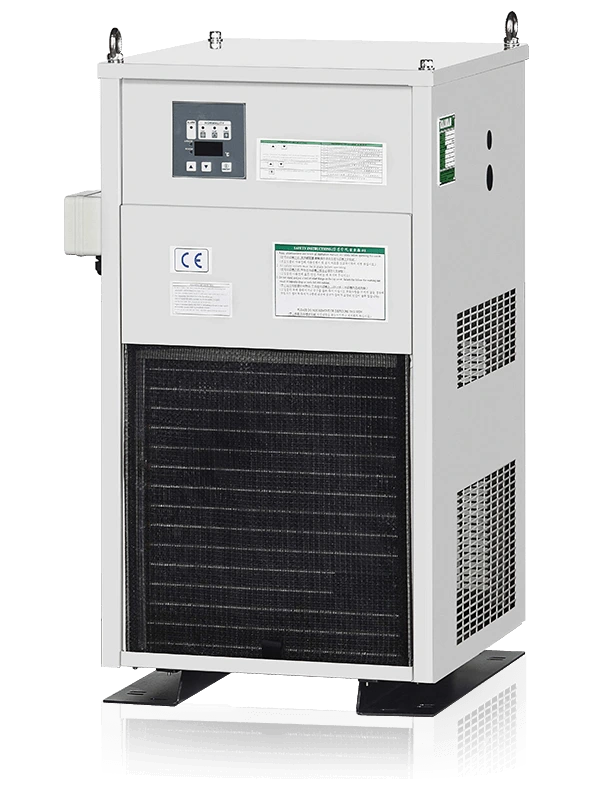

Oil Chiller KO 6-8 PS

Oil Chiller KO 4PTS

Oil Chiller KO 4PTHS

Oil Chiller KO 4PS

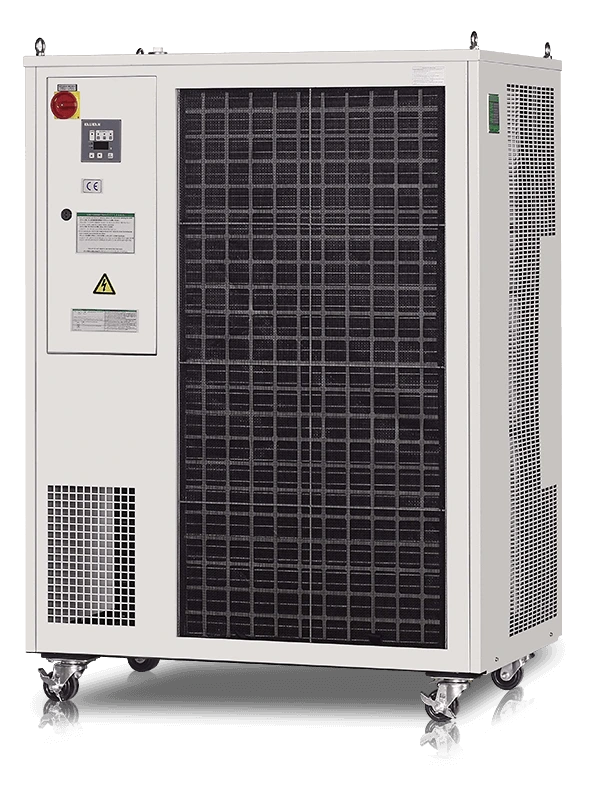

Oil Chiller KO 4K

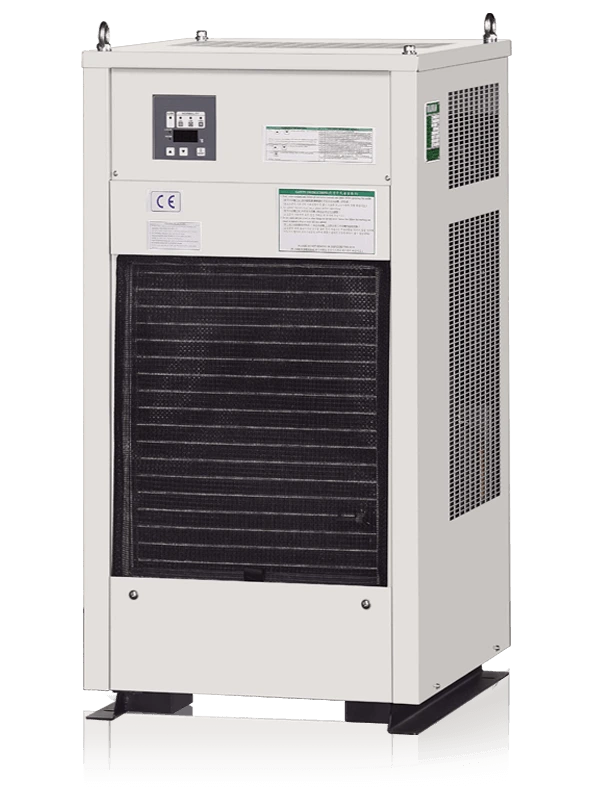

Oil Chiller KO 2KPS

Deskripsi Produk

Beberapa model yang kami punya, penjelasan singkatnya bisa dilihat pada daftar dibawah ini.

Application

Spindle Oil Cooling
Oil Cooling
Gear Lubricating Oil Cooling
Hydraulic Oil Cooling
Lubricating Oil Cooling
Grinding Oil Cooling
Cutting Oil Cooling

Applicable Machines

CNC Lathe
NC Special Purpose Machine
CNC Punch Press
CNC Machining Center
CNC Grinding Machine
CNC E.D.M
Various Hydraulic Equipment

Notices

Above cooling capacity is tested under the conditions of ambient temperature 35°c, oil outlet temperature 35°c, and oil grade ISO VG32.
Contact us when special specifications are required.
Design and specifications are subjec to change without prior notice.
Oil tank is an optional equipment. Speicity your requirement when ordering.

Spesifikasi Unit

Beberapa model yang kami punya, detail spesifikasinya bisa dilihat pada table dibawah ini.

Models		KO - 4PS	KO - 6PS	KO - 8PS	KO - 12PS	KO - 18PS
Power Source	Main Power Source Voltage	3 ~ 220 VAC 50 /60 Hz
Power Source	Power Input	24 VDC / 220VAC
Applicadle Fluid		Hydraulic Oil, Lubricating Oil 4 - 300 cSt
Cooling Capacity 50 / 60 Hz	kcal/hr	800 / 1000	1200 / 1500	1600 / 2000	2400 / 3000	3600 / 4500
Cooling Capacity 50 / 60 Hz	W	925 / 1160	1390 / 1740	1860 / 2325	2790 / 3488	4185 / 5230
Temperature Control	Fixed Temperature	Fix Temperature ( Setting Range: 5 - 40℃)
	Differential Temperature	Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
	Adjusing according machine temperation	Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang	Envirtonmental Temperature	5~ 40 ℃
Ambient Temperature Working Rang	Fluid Temperature	5~ 40 ℃
Pump Flow 50 / 60 Hz	L / min	4.5 / 7.2	12 / 15		16 / 20	16 / 20
In / Out Port Size	Inch	PT 1/2"	PT 3/4"
Dimension WхDхH mm	No tank	380-460-690	520-540-871		545-620-900	510-675-1045
Weight KG	No tank	50	85		100	125

Models		KO - 2KPS	KO - 3KPS	KO - 4KPS	KO - 5KPS	KO - 6KPS
Power Source	Main Power Source Voltage	3 ~ 220 VAC 50 /60 Hz
Power Source	Power Input	24 VDC / 220VAC
Applicadle Fluid		Hydraulic Oil, Lubricating Oil 4 - 300 cSt
Cooling Capacity 50 / 60 Hz	kcal/hr	4800 / 6000	7200 / 9000	9600 / 12000	12000 / 15000	14400 / 18000
Cooling Capacity 50 / 60 Hz	W	5580 / 6975	8370 / 10465	11160 / 13950	13920 / 17400	16704 / 20880
Temperature Control	Fixed Temperature	Fix Temperature ( Setting Range: 5 - 40℃)
	Differential Temperature	Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
	Adjusing according machine temperation	Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang	Envirtonmental Temperature	5~ 40 ℃
Ambient Temperature Working Rang	Fluid Temperature	5~ 40 ℃
Pump Flow 50 / 60 Hz	L / min	24 / 30	32 / 40	50 / 70	50 / 70	60 / 75
In / Out Port Size	Inch	PT 3/4"	PT 1"	PT PT 1-1/4"		PT 2"
Dimension WхDхH mm	No tank	510-680-1045	660-760-1045	1110-710-1560		1130-750-1830
Weight KG	No tank	125	175	230	250	270

Models		KO - 7.5KPS	KO - 10KPS	KO - 15KPS	KO - 20KPS
Power Source	Main Power Source Voltage	3 ~ 220 VAC 50 /60 Hz
Power Source	Power Input	24 VDC / 220VAC
Applicadle Fluid		Hydraulic Oil, Lubricating Oil 4 - 300 cSt
Cooling Capacity 50 / 60 Hz	kcal/hr	18000 / 22500	24000 / 30000	36000 / 45000	48000 / 60000
Cooling Capacity 50 / 60 Hz	W	20880 / 26100	27840 / 34800	41760 / 52200	55680 / 69600
Temperature Control	Fixed Temperature	Fix Temperature ( Setting Range: 5 - 40℃)
	Differential Temperature	Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
	Adjusing according machine temperation	Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang	Envirtonmental Temperature	5~ 40 ℃
Ambient Temperature Working Rang	Fluid Temperature	5~ 40 ℃
Pump Flow 50 / 60 Hz	L / min	120 / 150	150 / 180	200 / 250	200 / 300
In / Out Port Size	Inch	PT 2"		PT 2 1/2"
Dimension WхDхH mm	No tank	1350-850-1850		1650-1235-1850	2200-800-2050
Weight KG	No tank	330	350	400	500

1. All cooling capacity at an ambient temperature of 32 ℃, outlet liquid temperature of 25 ℃ and 220VAC 60Hz are measured.
2. Special voltage and specifications requested, please contact us.
3. Due to technological upgrading and quality improvement and change this specification without notice.
4. kcal/hr*3.968=BTU
5. The filter cans and filter elements are optional products, some models are recommended to be installed. If need our suggestions, please contact the business department.

Models		KO - 4PTGS	KO - 4PTHS	KO - 4PTS	KO - 6PTS
Power Source	Main Power Source Voltage	3 ~ 220 VAC 50 /60 Hz
Power Source	Power Input	24 VDC / 220VAC
Applicadle Fluid		Hydraulic Oil, Lubricating Oil 4 - 300 cSt
Cooling Capacity 50 / 60 Hz	kcal/hr	800 / 1000			1200 / 1500
Cooling Capacity 50 / 60 Hz	W	925 / 1160			27840 / 34800
Temperature Control	Fixed Temperature	Fix Temperature ( Setting Range: 5 - 40℃)
	Differential Temperature	Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
	Adjusing according machine temperation	Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang	Envirtonmental Temperature	5~ 40 ℃
Ambient Temperature Working Rang	Fluid Temperature	5~ 40 ℃
Pump Flow 50 / 60 Hz	L / min	4.5 / 7.2			12 / 15
In / Out Port Size	Inch	PT 1/2"			PT 3/4"
Dimension WхDхH mm	No tank	380-480-690	370-440-832	475-450-950	552-570-1185
Capacity Of Liquid Tank	Liter	6	10	15	25
Weight KG	No tank	55	60	70	112

Models		KO - 8PTS	KO - 12PTS	KO - 18PTS	KO - 2KPTS
Power Source	Main Power Source Voltage	3 ~ 220 VAC 50 /60 Hz
Power Source	Power Input	24 VDC / 220VAC
Applicadle Fluid		Hydraulic Oil, Lubricating Oil 4 - 300 cSt
Cooling Capacity 50 / 60 Hz	kcal/hr	1600 / 2000	2400 / 3000	3600 / 4500	4800 / 6000
Cooling Capacity 50 / 60 Hz	W	1860 / 2325	2790 / 3488	4185 / 5230	5580 / 6975
Temperature Control	Fixed Temperature	Fix Temperature ( Setting Range: 5 - 40℃)
	Differential Temperature	Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
	Adjusing according machine temperation	Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang	Envirtonmental Temperature	5~ 40 ℃
Ambient Temperature Working Rang	Fluid Temperature	5~ 40 ℃
Pump Flow 50 / 60 Hz	L / min	12 / 15	16 / 20	16 / 20	24 / 30
In / Out Port Size	Inch	PT 3/4"	PT 3/4"	PT 1"	PT 1"
Dimension WхDхH mm	No tank	552-570-1185		510-710-1300
Capacity Of Liquid Tank	Liter	25		45
Weight KG	No tank	112		170

Models		KO - 3KPTS	KO - 4KPTS	KO - 5KPTS	KO - 6KPTS
Power Source	Main Power Source Voltage	3 ~ 220 VAC 50 /60 Hz
Power Source	Power Input	24 VDC / 220VAC
Applicadle Fluid		Hydraulic Oil, Lubricating Oil 4 - 300 cSt
Cooling Capacity 50 / 60 Hz	kcal/hr	7200 / 9000	9600 / 12000	12000 / 15000	14400 / 18000
Cooling Capacity 50 / 60 Hz	W	8370 / 10465	11160 / 13950	13920 / 17400	16704 / 20880
Temperature Control	Fixed Temperature	Fix Temperature ( Setting Range: 5 - 40℃)
	Differential Temperature	Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
	Adjusing according machine temperation	Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang	Envirtonmental Temperature	5~ 40 ℃
Ambient Temperature Working Rang	Fluid Temperature	5~ 40 ℃
Pump Flow 50 / 60 Hz	L / min	32 / 40	50 / 70	50 / 70	60 / 75
In / Out Port Size	Inch	PT 1"	PT 1-1/4"		PT 2"
Dimension WхDхH mm	No tank	660-835-1400	1110-710-1560		1130-750-1830
Capacity Of Liquid Tank	Liter	60	-		100
Weight KG	No tank	220	265	280	300

Models		KO - 7.5KPTS	KO - 10KPTS	KO - 15KPTS	KO - 20KPTS
Power Source	Main Power Source Voltage	3 ~ 220 VAC 50 /60 Hz
Power Source	Power Input	24 VDC / 220VAC
Applicadle Fluid		Hydraulic Oil, Lubricating Oil 4 - 300 cSt
Cooling Capacity 50 / 60 Hz	kcal/hr	18000 / 22500	24000 / 30000	36000 / 45000	48000 / 60000
Cooling Capacity 50 / 60 Hz	W	20880 / 26100	27840 / 34800	41760 / 52200	55680 / 69600
Temperature Control	Fixed Temperature	Fix Temperature ( Setting Range: 5 - 40℃)
	Differential Temperature	Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
	Adjusing according machine temperation	Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang	Envirtonmental Temperature	5~ 40 ℃
Ambient Temperature Working Rang	Fluid Temperature	5~ 40 ℃
Pump Flow 50 / 60 Hz	L / min	120 / 150	150 / 180	200 / 250	200 / 300
In / Out Port Size	Inch	PT 2"		PT 2 1/2"
Dimension WхDхH mm	No tank	1350-850-1850		1650-1235-1850	2200-800-2050
Capacity Of Liquid Tank	Liter	150	200	300	350
Weight KG	No tank	400	450	500	600

1. All cooling capacity at an ambient temperature of 32 ℃, outlet liquid temperature of 25 ℃ and 220VAC 60Hz are measured.
2. Special voltage and specifications requested, please contact us.
3. Due to technological upgrading and quality improvement and change this specification without notice.
4. kcal/hr*3.968=BTU
5.The filter cans and filter elements are optional products, some models are recommended to be installed. If need our suggestions, please contact the business department.
