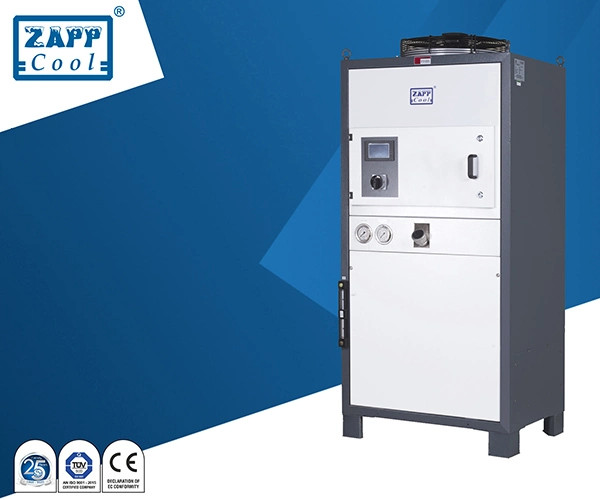

Water Chiller

Temperature.co.id - Water Chiller

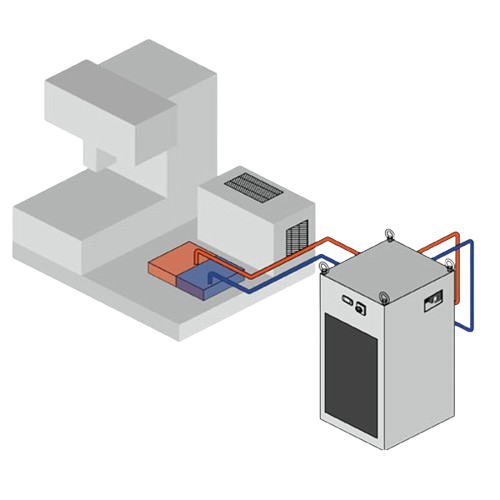

Cara Kerja Water Chiller

Water chiller mendinginkan air dengan mengalirkan air melalui penukar panas, kemudian mengeluarkan panas melalui kondensor untuk menjaga suhu yang diinginkan.

Temperature.co.id - Cara Kerja Water Chiller

Penggunaan Water Chiller

Penggunaan Water Chiller bisa berbeda tergantung dari kebutuhan serta situasi dan kondisi.

Temperature.co.id - Water Chiller 1Temperature.co.id - Water Chiller 2Temperature.co.id - Water Chiller 3

Bidang Pengaplikasian

Bidang pengaplikasian Water Chiller bisa sangat beragam dan bermacam-macam, berikut contoh yang sering digunakan.

Industrial Equipment Services

Water/DM Water Cooling, Welding Plasma, Laser, RF Valve, X-Ray, EDM, Testing Lab.

Manufacturing Processes

Mould Cooling, Plastic Injection, Extrusion, Pouch Packing, Pet Bottle.

Specialized Manufacturing Technologies

Spot Welding, Inkjet Printing, Induction Heating.

Specialized Construction and Manufacturing Processes

Vacuum System, Concrete Batching, Dental Casting.

Specialized Industrial Machinery

Gold Furnace, Printing Roller, PCB Drilling Machine, Rubber Moulding.

Spesifikasi Unit

Beberapa model yang kami punya, detail spesifikasinya bisa dilihat pada table dibawah ini.

WCB 005 TWC 010 TWC 020 TWC 030 TWC 050 WCB 075 WCB 100 WCB 150 WCB 200 Model
1.75 3.5 7.0 10.5 17.5 26.3 35.0 52.7 70.0 Cooling Capacity (W)
1ph/230v/50hz 3ph/415v/50hz 3Ph/415v/50hz Operating Voltage
1.0 2.0 4.0 6.0 8.0 10.0 13.0 24.0 28.0 Power (KW)
10 - 15 12 - 15 20 - 25 30 - 35 55 - 65 75 - 85 100 - 110 155 - 170 205 - 215 Flow Rate (l/min)
1/2" 1/2" 1" 1-1/2" 1-1/2" 2" 2" In / Out Size (BSP)
50 110 150 170 300 400 550 800 925 Weight (kg)
15 30 50 100 200 400 Tank Capacity
365 650 800 1000 Dimensions W (mm)
550 600 900 1780 2200 D (mm)
585 1300 1765 1895 1660 1955 H (mm)
View View View View View View View View View Datasheet

Water Chiller Model Lainnya

Beberapa model yang tersedia bisa dilihat satu persatu dibawah ini.

Water Chiller KW-18
Water Chiller KW-15
Water Chiller KW-6K
Water Chiller KW 6-8-12 PTS
Water Chiller KW-4PTS
Water Chiller KW-3K
Temperature.co.id - Watercooler KO-7
Temperature.co.id -Watercooler KO-4K

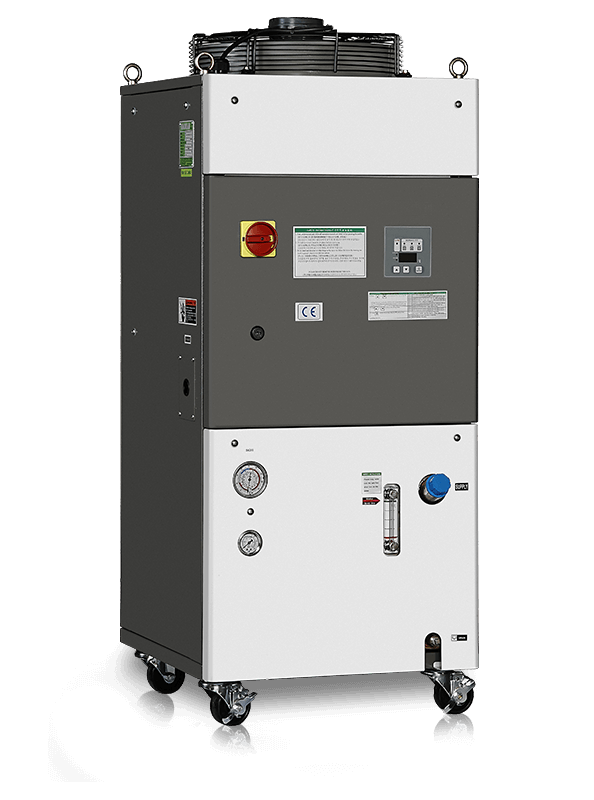

Water Chiller KW-18

Water Chiller KW-18

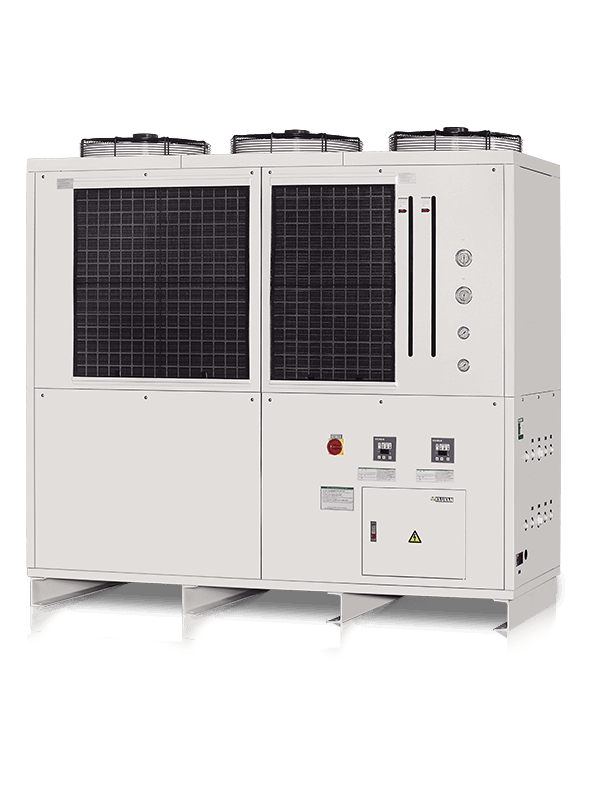

Water Chiller KW-15

Water Chiller KW-15

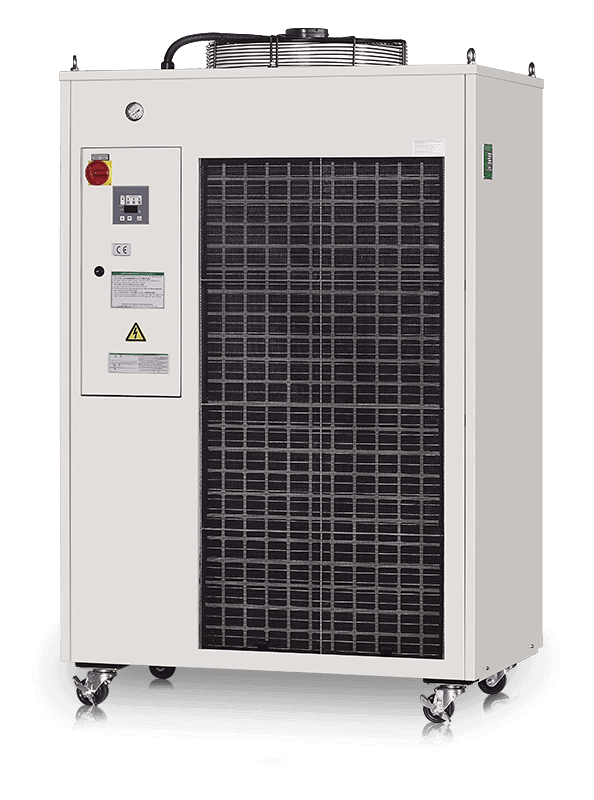

Water Chiller KW-6K

Water Chiller KW-6K

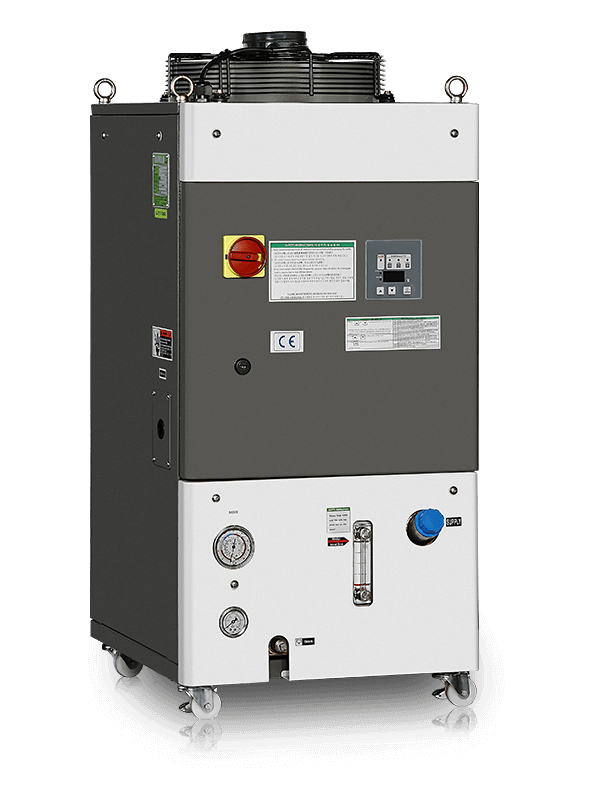

Water Chiller KW 6-8-12 PTS

Water Chiller KW 6-8-12 PTS

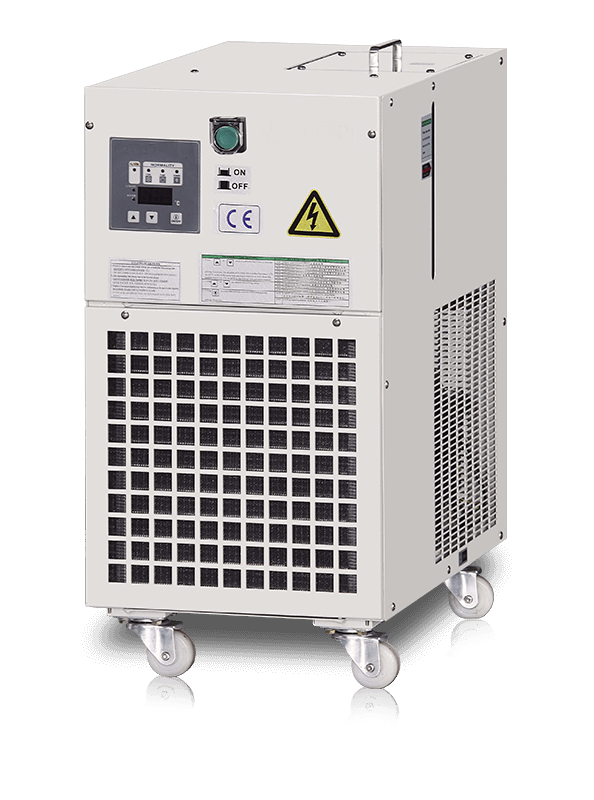

Water Chiller KW-4PTS

Water Chiller KW-4PTS

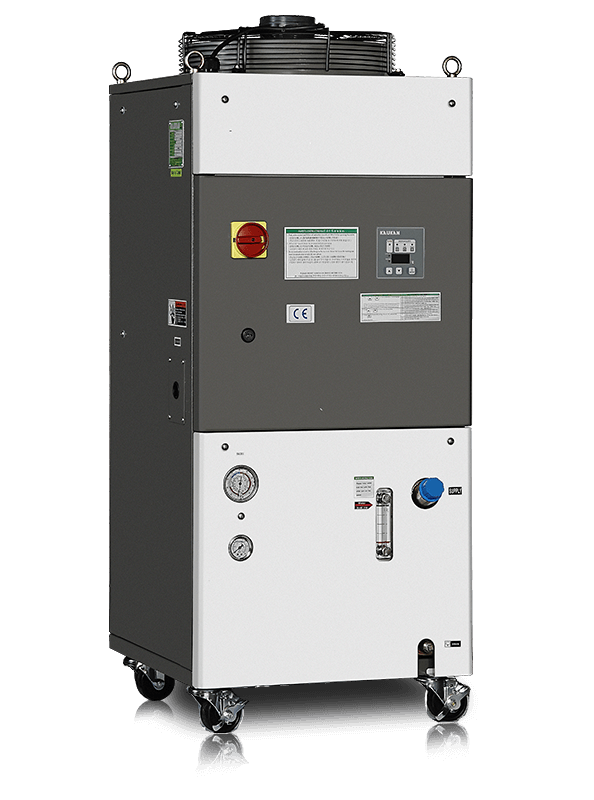

Water Chiller KW-3K

Water Chiller KW-3K

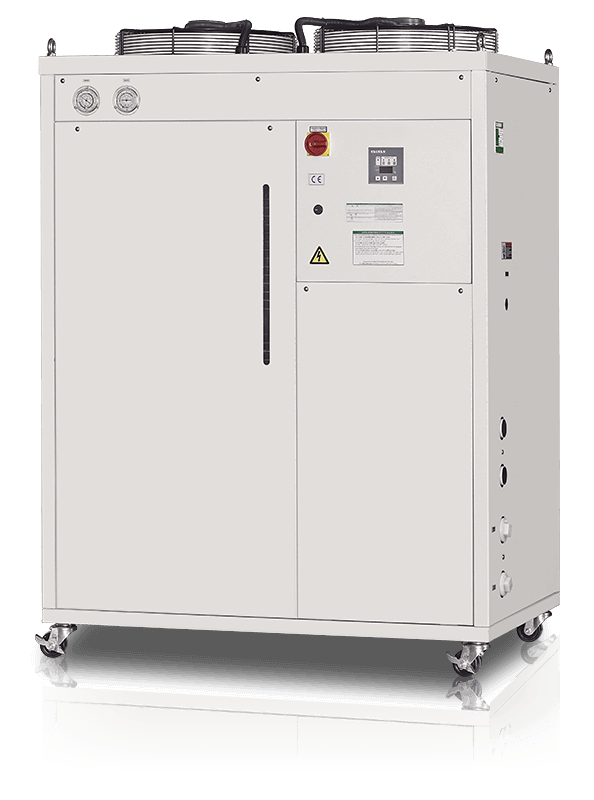

Water Chiller KO-7

Temperature.co.id - Watercooler KO-7

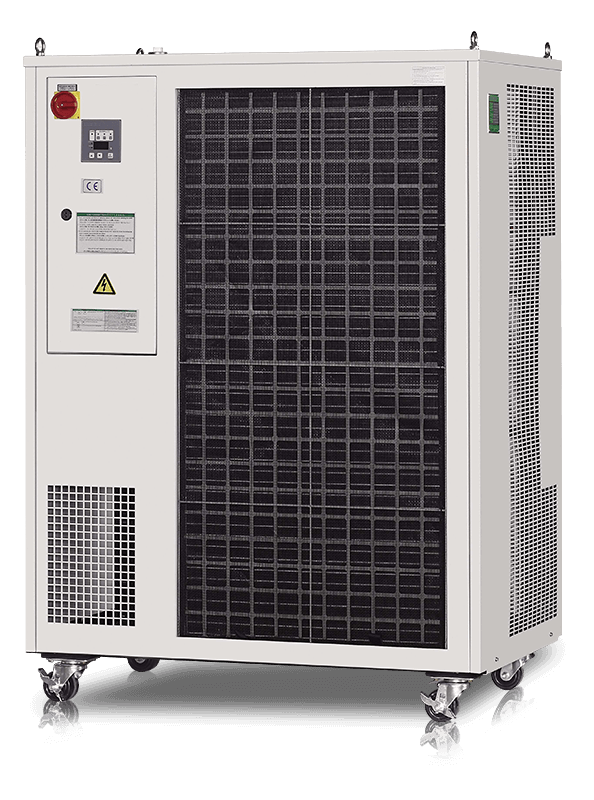

Water Chiller KO-4K

Temperature.co.id -Watercooler KO-4K

Deskripsi Produk

Beberapa model yang kami punya, penjelasan singkatnya bisa dilihat pada daftar dibawah ini.

Application

  • High Speed Spindle
  • Laser
  • Cooling Water for Cutting Machine
  • Mold Cooling
  • Vacuum Pump
  • All Equipments Needed to Cool by Water

Applicable Machines

  • CNC Lathe
  • CNC Machining Center
  • CNC Wire Cutting Machine
  • PCB Drilling or Routing Machine
  • Medical Appliances
  • Injection Machine
  • Laser Cutting & Marking Machine
  • Chiller of Low Temperature (-35°C)
  • Food Machine
  • All Product Equipments & Instruments for Semiconductor

Notices

  • Above cooling capacity is tested under the conditions of ambient temperature 35°c, oil outlet temperature 35°c, and oil grade ISO VG32.
  • Contact us when special specifications are required.
  • Design and specifications are subjec to change without prior notice.
  • Oil tank is an optional equipment. Speicity your requirement when ordering.

Spesifikasi Unit

Beberapa model yang kami punya, detail spesifikasinya bisa dilihat pada table dibawah ini.

Models KW - 4PTS KW - 6PTS KW - 8PTS KW - 12PTS KW - 18PTS
Power Source Main Power Source Voltage 3 ~ 220 VAC 50 /60 Hz
Power Input 24 VDC / 220VAC
Applicadle Fluid Water (To add any other liquid for antifrezzen, antirust that must benon-sulfur and PH shall be between 5 ~ 9)
Cooling Capacity 50 / 60 Hz kcal/hr 800 / 1000 1200 / 1500 1600 / 2000 2400 / 3000 3600 / 4500
W 925 / 1160 1390 / 1740 1860 / 2325 2790 / 3488 4185 / 5230
Temperature Control Fixed Temperature Fix Temperature ( Setting Range: 5 - 40℃)
Differential Temperature Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
Adjusing according machine temperation Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang Envirtonmental Temperature 5~ 40 ℃
Fluid Temperature 5~ 40 ℃
Pump Flow 50 / 60 Hz L / min 7.2/ 1 4 26 / 33 40 / 50
In / Out Port Size Inch PT 1/2" PT 1/2" PT 3/4"
Dimension WхDхH mm W-D-H mm 565-325-665 515-600-1150 560-615-1370
Liter 6 20 40
Weight KG No tank 38 85 90 130
With tank 45 100 150



Models KW - 2KPTS KW - 3KPTS KW - 4KPTS KW - 5KPTS KW - 6KPTS
Power Source Main Power Source Voltage 3 ~ 220 VAC 50 /60 Hz
Power Input 24 VDC / 220VAC
Applicadle Fluid Water (To add any other liquid for antifrezzen, antirust that must benon-sulfur and PH shall be between 5 ~ 9)
Cooling Capacity 50 / 60 Hz kcal/hr 4800 / 6000/td> 7200 / 9000 9600 / 12000 12000 / 15000 14400 / 18000
W 5580 / 6975 8370 / 10465 11160 / 13950 13920 / 17400 16745 / 20930
Temperature Control Fixed Temperature Fix Temperature ( Setting Range: 5 - 40℃)
Differential Temperature Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
Adjusing according machine temperation Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang Envirtonmental Temperature 5~ 40 ℃
Fluid Temperature 5~ 40 ℃
Pump Flow 50 / 60 Hz L / min 40 / 50 64 / 80 64 / 80
In / Out Port Size Inch PT 3/4" PT 1 1/4" PT 2"
Dimension WхDхH mm W-D-H mm 560-615-1370 600-670-1455 1150-710-1570 1120-710-1785
Liter 40 62 62 120
Weight KG No tank 130 140 180 180 250
With tank 150 150 200 220 300



Models KW - 7.5KPTS KW - 10KPTS KW - 15KPTS KW - 20KPTS
Power Source Main Power Source Voltage 3 ~ 220 VAC 50 /60 Hz
Power Input 24 VDC / 220VAC
Applicadle Fluid Water (To add any other liquid for antifrezzen, antirust that must benon-sulfur and PH shall be between 5
Cooling Capacity 50 / 60 Hz kcal/hr 18000 / 22500 24000 / 30000 36000 / 45000 48000 / 60000
W 20925 / 26160 27905 / 34880 41860 / 52325 55810 / 69765
Temperature Control Fixed Temperature Fix Temperature ( Setting Range: 5 - 40℃)
Differential Temperature Differential Temperature ( Room Temperature/Fluid Temperature, Setting Range: -15 ~ + 15℃)
Adjusing according machine temperation Differential Temperature. Liquild temperature Synchronized Adjustment with spindle column. ( Fluid Temperature / Casting Temperature, Setting Range: -15 ~ + 15℃ )
Ambient Temperature Working Rang Envirtonmental Temperature 5~ 40 ℃
Fluid Temperature 5~ 40 ℃
Pump Flow 50 / 60 Hz L / min 106 / 133 106 / 133 160/200
In / Out Port Size Inch PT 2" PT 2 1/2"
Dimension WхDхH mm W-D-H mm 1300-800-1820 2220-850-2070
Liter 160 190 250 300
Weight KG No tank 350 400 450 520
With tank 400 450 500 600

1. All cooling capacity at an ambient temperature of 32 ℃, outlet liquid temperature of 25 ℃ and 220VAC 60Hz are measured.
2. Special voltage and specifications requested, please contact us.
3. Due to technological upgrading and quality improvement and change this specification without notice.
4. kcal/hr*3.968=BTU
5.The filter cans and filter elements are optional products, some models are recommended to be installed. If need our suggestions, please contact the business department.
