Curing Resin
Micro lenses, precision devices, touch panels, etc.
UV LABEL™
Indicate the Irradiation Level
UV LABELs™ indicate the level of UV irradiation in various fields by change color!
UV labels contribute to monitoring the performance of UV lights
or preserving evidence of irradiation level for quality assurance.
Just paste a UV label indicator wherever you want. “they’re easy to handle, and easy to check”.
UV Labels Manufacturing Process

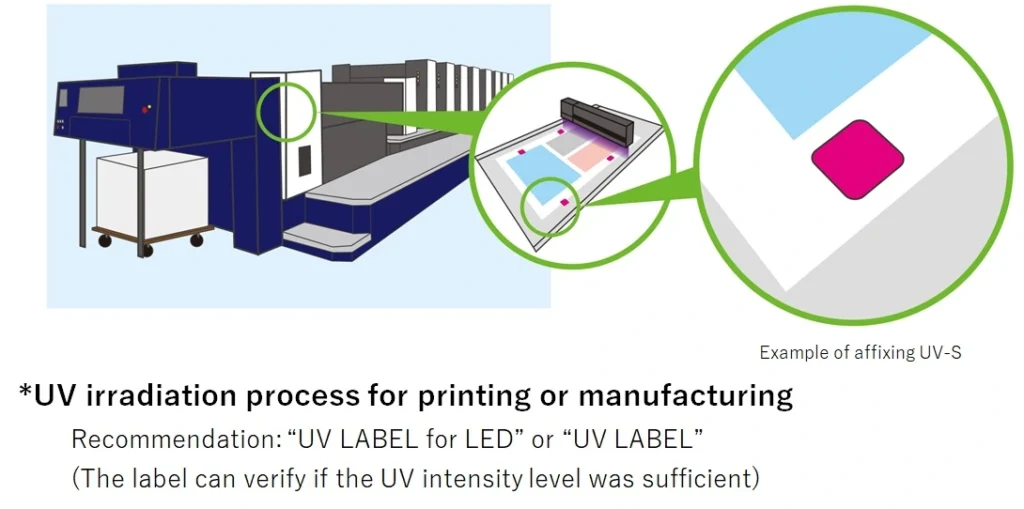

UV labels for use during the manufacturing process
Features
Features of UV labels for disinfection practices
With the UV indicator, you can recognize the effectiveness of the UV disinfection system and confirm whether the work has been done completely and reliably.

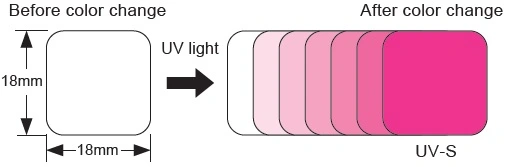

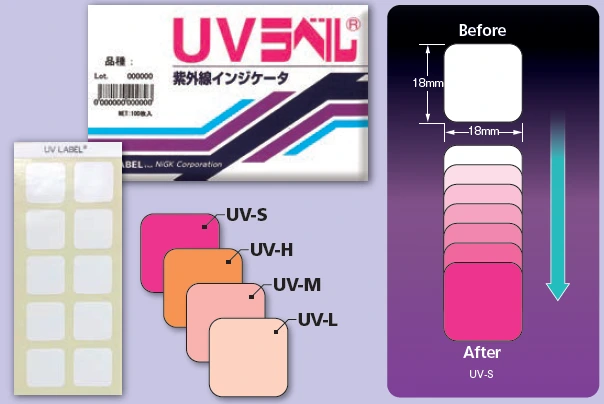

UV LABEL™

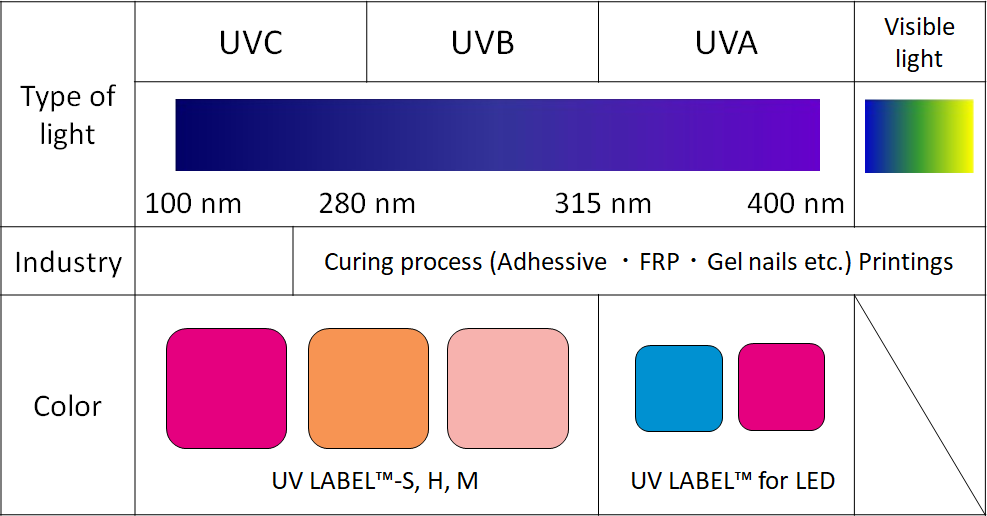

Standard UV label for wide wavelength
Type: UV-S, -H, -M, -L
Number of elements: One
Content: 100pcs/pkg
RoHS compliant

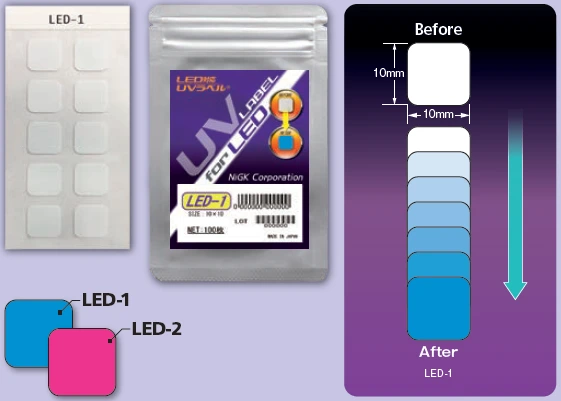

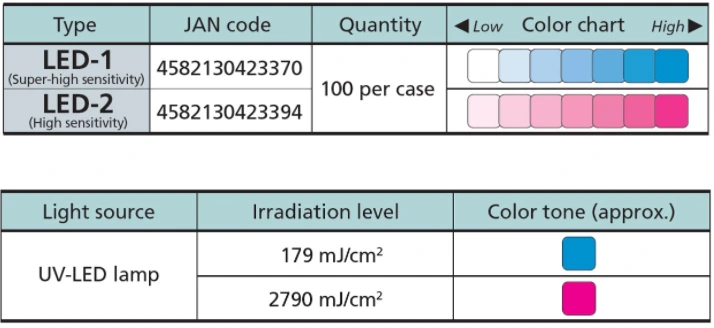

UV LABEL™ for LED
Standard UV label for wide wavelength
Type: LED-1, -2
Number of elements: One
Content: 100pcs/pkg
RoHS compliant

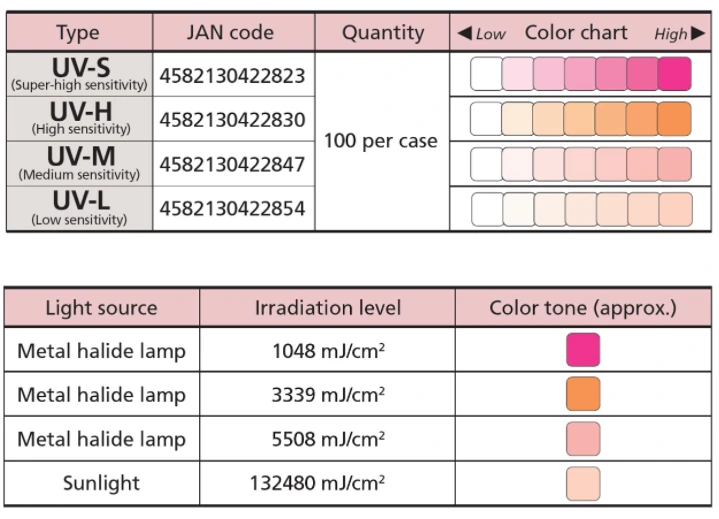

*The color tones and irradiance levels shown above are based on factory tests conducted using mercury lamps. The color tone and radiation reading may differ depending upon radiation conditions.
*The LED-1 label changes from white to bright blue. There is high sensitivity around UVA ranges 365, 385, 395 and 405 nm.
For more technical information about the UV LABEL™ and UV LABEL for LED, please read the following articles.

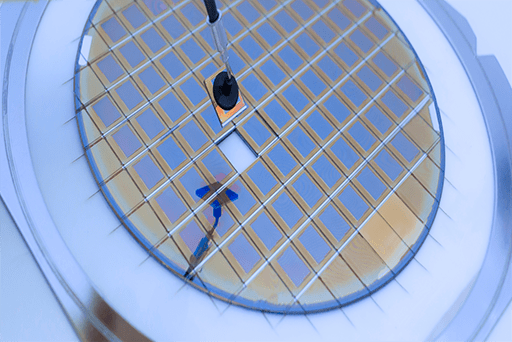

Semiconductor
UV labels can check if the UV light is working correctly when dicing silicon wafers on a dicing tape which is broken by exposure to UV light.

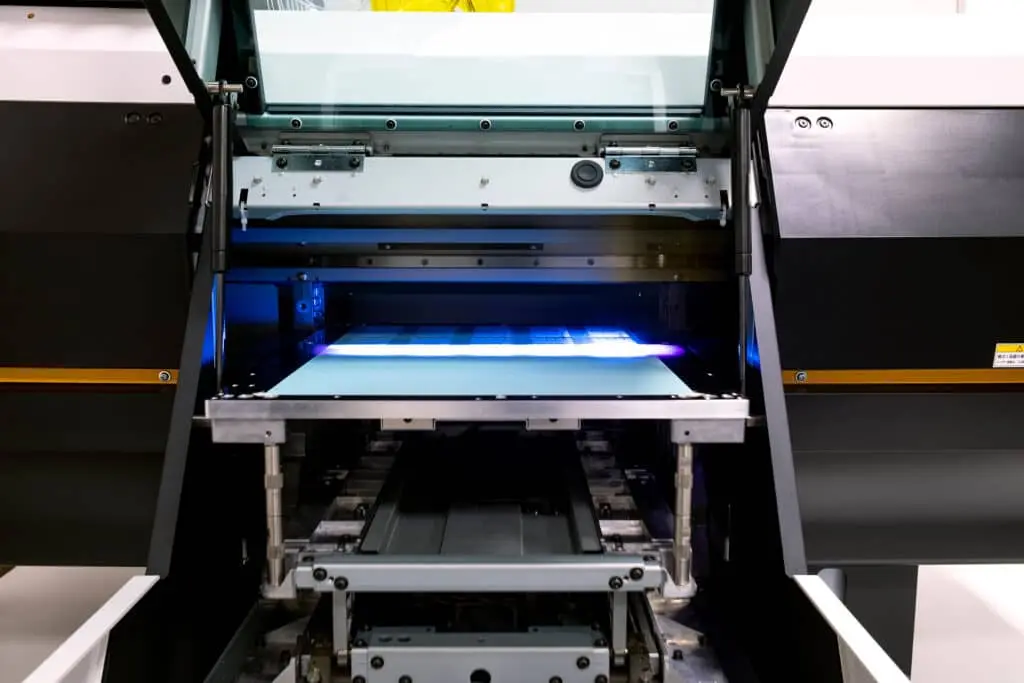

Printings
For the production of dental models, orthodontics, and implant treatment.
Medical Fields
For the production of dental models, orthodontics, and implant treatment.
- The UV LABEL provides only qualitative information through color changes, not quantitative information.
- The resulting color depends on multiple factors. The same radiation intensity and wavelength do not necessarily result in the same color if other conditions differ or if a different machine is used.
- First, obtain reference color data (A) with a specific cycle (B) and lamp (C).
- As long as (B) and (C) are same, the result should be (A).
- To avoid differences between lots, we recommend obtaining new reference data for each lot.
- Size, shape and designs can be customized.
- Sensitivity and color tone should be based on standard products.
- Prices differ depending upon design and order quantity. Please contact our sales office for further information.
- Store unused products using the black light-blocking film which comes with the product.
- Avoid any irradiation before use. Interior lamps and lighting can cause color changes.
- Interior lamps and lighting can cause color changes.
- Avoid high temperature and excessive humidity.
- Store at room temperature.
- Colors may fade if the color change is insufficient or if stored in high-temperature conditions after color change.
- For UV-S and UV-H types, colors may fade if the color is insufficient or if stored in high-temperature conditions after color change.
- Always store using the black light-blocking film which comes with the product. Avoid any irradiation before use.
- Remove water, oil, rust, and dust from the surface before applying labels.
- Contamination and uneven surfaces can result in abnormal color changes or cause labels to come off.
- Remove the release film, apply where temperature monitoring is required, and press the surface of the label gently with finger or cloth.
- Strong rubbing might damage the label and affect performance, (resulting in abnormal color changes).
- Apply labels on flat surfaces. Labels are not designed to be applied on curved or corner surfaces.
- The UV LABEL and UV LABEL for LED do not contain chemical substances prohibited by the RoHS directive.
Immediate health, physical, and environmental hazards:
- The environmental properties of this product present a low environmental hazard.
- When used under reasonable conditions and in accordance with the directions for use, should not present a health hazard.
- Use or alteration of the product in a manner not in accordance with the product’s directions for use may affect the performance of the product and present health and safety hazards.
