YET-610/610L

YET-610/610L High Accuracy Thermocouple Temperature Data Logger
Features:
- Support K, T and J thermocouples
- Resolution up to 0.01℃
- Factory accuracy ±(0.3%|t|+0.40)℃
- Accuracy up to ±0.1℃ after point calibration
- Measuring range -200~1370℃

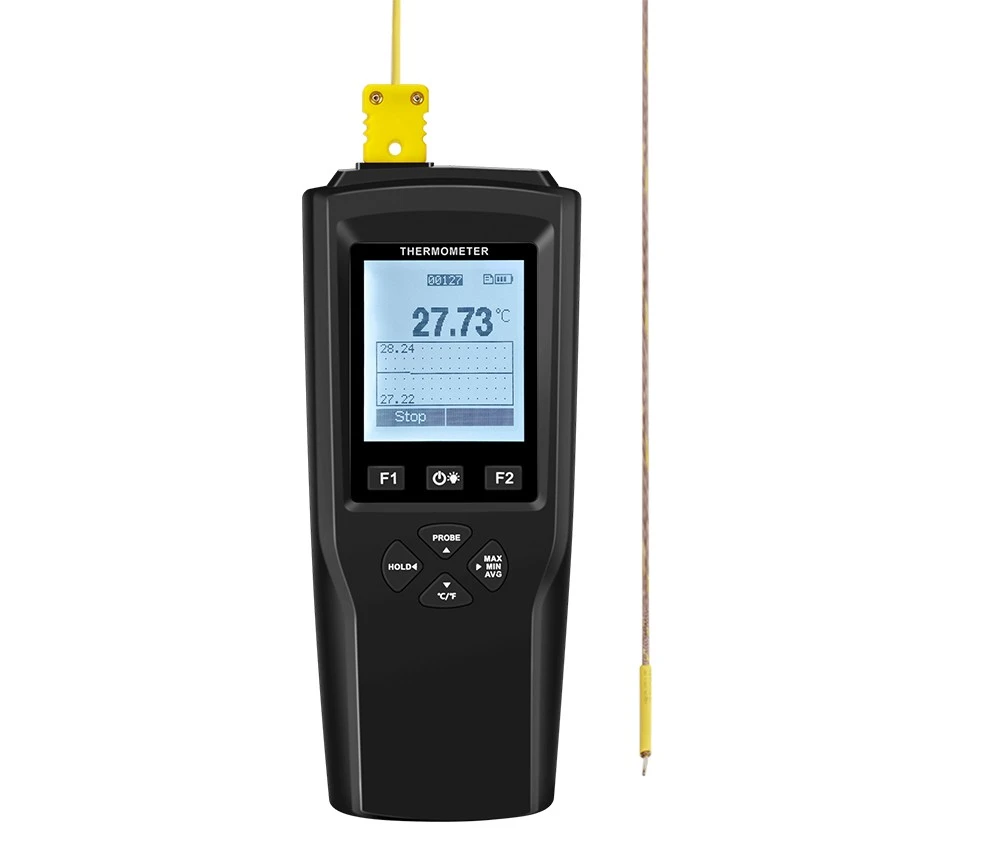

- Display temperature graph
- Over-limit alarm function
- Support 4 kinds of format files (YET-610L)
- Large dot matrix LCD screen, high-quality backlight
YET-610 is an instrument used to measure temperature by applying the principle of thermocouple temperature measurement. Thanks to the high-precision circuit principle and high-precision reference source inside the instrument, coupled with accurate factory calibration, the resolution of the instrument reaches 0.01℃, and the factory precision reaches ±(0.3%|t|+0.40)℃.
YET-610 can display temperature change curve. This instrument also opens the point calibration function for users, and accurate multi-point calibration can greatly improve the measurement accuracy of the whole machine (the system composed of the host and the probe). This instrument supports the most commonly used K, T and J thermocouple probes. This compatibility with multiple types of probes expands the application fields of the instrument.
YET-610L adds the recording function on the basis of YET-610. YET-610L can record all the data during temperature measurement. The files generated by the recording can be viewed directly on this machine or on any device that supports reading U disk.
YET-610L also uses data space separation technology, so it can export files in a variety of different formats. Most importantly, the files stored in the instrument can be restored at any time and transferred to other devices. This backup measure effectively reduces the risk of accidental data loss by users.
- Laboratory physical measurement and recording
- Boiler equipment operation
- Concrete pouring
- Metal processing
- Food
- Medicine
- Household
- Industry, aerospace
- Cold chain transportation
- Car market
- Livestock
- Supermarket
Model | YET-610 | YET-610L |
---|---|---|
Channel | 1 | |
Record Function | No | Yes |
Probe Type | Support K, T, J type thermocouple | |
Unit | ℃, ℉ | |
Data Measuring Range | Type K: -200~1370℃ Package with K probe: -50~350℃ Type T: -200~400℃ Package with K probe: -40~350℃ Type J: -200~1200℃ Package with J probe: -40~750℃ |
|
Resolution | 0.01℃ (-200.00℃~+999.99℃) 0.1℃ (+1000.0℃~+1370.0℃) |
|
Accuracy | ±(0.3%|t|+0.40)℃ up to ±0.1℃ after point calibration | |
Sample Rate | 2 times/second | |
Calibration | Multi-point calibration | |
Storage Capacity | No | 20000 groups of readings |
Record Interval | No | Adjustable from 1~86399 seconds |
File Format | No | txt, csv, xls, dlg |
Compatibility | No | Windows XP/Vista/7/8/10 |
Display | Dot matrix LCD display with backlight | |
Operating Temperature | -10~50℃ (Non-condensing) | |
Storage Temperature | -20~60℃ (Without batteries) | |
Power Supply Request | 3 pcs 1.5V AAA alkaline batteries 3 pcs 1.2V AAA rechargeable batteries 5V USB (Not recommended) |
|
Battery Life | About 190 hours (Condition: instrument is working continuously, backlight off, battery capacity 1200mAh, environment temperature 25℃) | |
Protection Class | IP52 | |
Size | 174*73*40mm | |
Weight | About 198g (Not including batteries and probe) | |
Warranty | 12 months |
